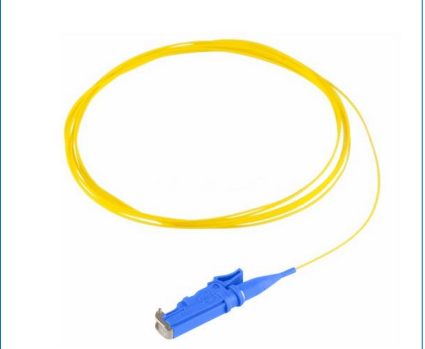

EC Pigtail LSZH/PVC SM/MM
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | TK-PC-48F-SC-OS2-50M |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, MoneyGram/Paypal |
| Yetenek temini: | 1000 pc/gün |
|
Detay Bilgi |
|||
| Ürün adı: | EC Pigtail | Müdahale Kaybı: | ≤0,3dB |
|---|---|---|---|
| Dönüş Kaybı: | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB | Elyaf Tipi: | Corning SM G652D |
| Fanout Çapı: | 1,6 mm/2,0 mm | Bağlayıcı tipi: | SC/UPC |
| Ceket malzemesi: | LSZH/PVC | Renk: | Sarı veya özelleştirilmiş |
| Dalgaboyu: | 1310nm, 1550nm | Uzunluk: | 10M, 20M veya Özelleştirilmiş |
| Çalışma sıcaklığı: | -20 ℃ ~ 70 ℃ | Lif çapı: | 9/125 |
| Fiber markası: | Corning, YOFC, OFS, Draka | ||
Ürün Açıklaması
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
