12 Port High Density Lc Adapter SM/MM Low IL
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | TK-PC-48F-SC-OS2-50M |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, MoneyGram/Paypal |
| Yetenek temini: | 1000 pc/gün |
|
Detay Bilgi |
|||
| Ürün adı: | 12 Bağlantı Noktalı Yüksek Yoğunluklu LC Adaptörü | Moda: | SM/MM |
|---|---|---|---|
| Müdahale Kaybı: | SM≤0,2dB; MM≤0,2dB | Çiftleşme dayanıklılığı (500 zamanlayıcı): | Ek Kayıp≤0.1dB |
| Sıcaklık～ Kararlılık: | Ek Kayıp≤0.2dB | Çekme Dayanımı: | 0,9 mm >5N |
| Çalışma sıcaklığı: | -20°C~+75°C | Depolama Sıcaklığı: | -40 ℃ ~+85 ℃ |
| Fiber markası: | Corning, YOFC, OFS, Draka | ||
| Vurgulamak: | 12 port LC fiber optic adapter,high density LC adapter low IL,SM MM LC adapter panel |
||
Ürün Açıklaması
12 Port High Density LC Adapter SM/MM Low IL
This adapter features a 12 port design that enables simultaneous transmission of multiple data channels, thereby improving system efficiency.
Moreover, it is internally equipped with carefully designed light blocking plates that play a crucial role in preventing human eyes from being injured by the illumination of fiber optic cables, effectively protecting vision.
This High Density 12 port LC adapter is highly suitable for applications that demand high-speed data transmission.
Adapter Applications
- CATV System
- Local Area Networks
- Telecommunication Networks
- FTTH and FTTx
- Testing Equipment
- Fiber LAN
Adapter Features
- Available Ceramic Sleeves
- Low Insertion Loss
- Carefully designed light blocking plate, safeguarding eye safety
- Independent fiber interfaces within a compact housing ideal for efficient high-density
- Compliant with IEC 61754-20 & IEC 61753-1 category(C)
- All parts compliant with ROHS
Adapter Specifications
| Product | 12 Port High Density LC Adapter Specification |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss≤0.1dB |
| Temperature Stability | Additional Loss≤0.2dB |
| Operating Temperature | -20℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |

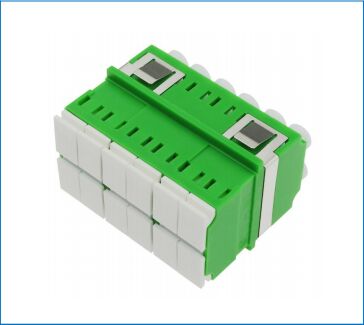

Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
