High Density MPO MTP Female Male - 12F 24F LC 0.9mm SM MM LGX Cassette Module Box for MPO MTP Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen, Çin |
| Marka adı: | OEM |
| Sertifika: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Model numarası: | MPO MTP |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | USD10.00-100.00/Piece |
| Ambalaj bilgileri: | Karton Kutulu |
| Ödeme koşulları: | Banka havalesi, Western Union, Paypal |
|
Detay Bilgi |
|||
| Fiber konektörü: | MPO,MTP, MT,SC,LC,FC,ST, vb. | Fiber çekirdekler: | Singlex, Dubleks, 4, 8, 12, 24 fiber vb. |
|---|---|---|---|
| Fiber modu: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Parlatma tipi: | PC, UPC, APC |
| Cinsiyet: | erkek kadın | Kablo Çapı: | 250um, 0,9 mm, 2,0 mm, 3,0 mm veya Özelleştirilmiş |
| Ceket Malzemesi: | PVC, LSZH, OFNR, OFNP, vb. | Kablo Uzunluğu: | 0,5M, 1M, 3M, 5M veya Özelleştirilmiş |
| Kablo Polaritesi: | A Tipi, B Tipi, C Tipi veya Özelleştirilmiş | Kablo Rengi: | Sarı, Aqua, Menekşe, Kireç veya Özelleştirilmiş |
| Vurgulamak: | High Density MPO MTP fiber cassette,12F 24F LC fiber optic module,LGX cassette for fiber patch panel |
||
Ürün Açıklaması

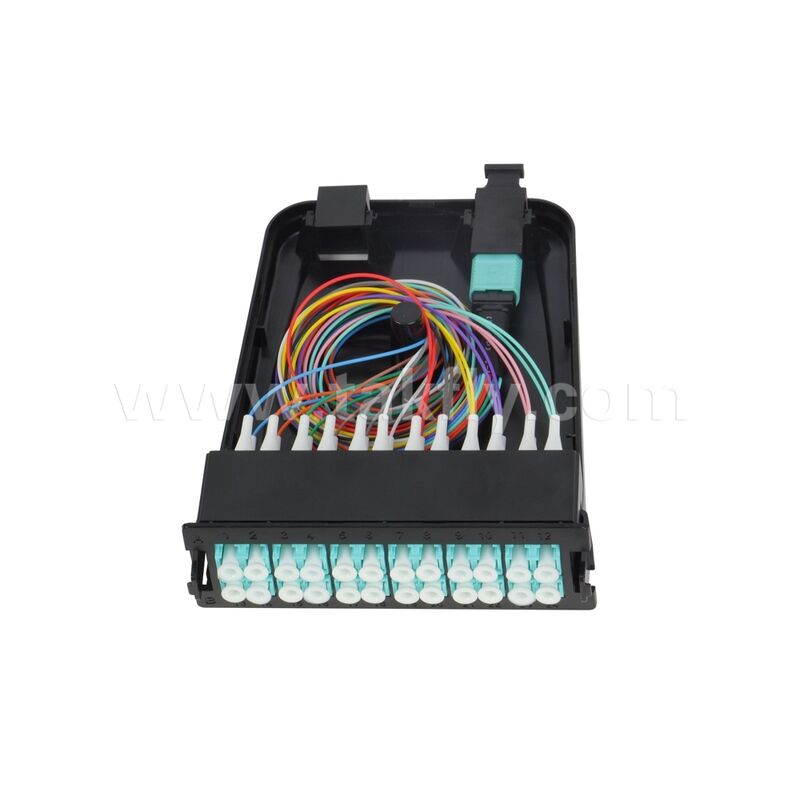

High Density MPO MTP Fiber Optic Cassette Module
This high-density MPO MTP cassette module supports 12F and 24F configurations with LC 0.9mm connectors, designed for compatibility with MPO MTP fiber optic patch panels, chassis, ODF units, and distribution boxes. Ideal for high-density connectivity applications in data centers and telecommunications infrastructure.
Product Overview
Our MPO MTP LC SC FC ST fiber optic patch cords, breakout cables, and trunk cables are engineered for reliable high-density connectivity. Available in various configurations including optical fiber patch cables, fiber optic jumpers, and optical fiber trunk cables to meet diverse installation requirements.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Please send an inquiry NOW! Welcome & Just Do It!
