High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box for 4pcs 24F MPO MTP-LC Cassette
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen, Çin |
| Marka adı: | OEM |
| Sertifika: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Model numarası: | MPO MTP |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | USD10.00-100.00/Piece |
| Ambalaj bilgileri: | Karton Kutulu |
| Ödeme koşulları: | Banka havalesi, Western Union, Paypal |
|
Detay Bilgi |
|||
| Fiber konektörü: | MPO,MTP, MT,SC,LC,FC,ST, vb. | Fiber çekirdekler: | Singlex, Dubleks, 4, 8, 12, 24 fiber vb. |
|---|---|---|---|
| Fiber modu: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Parlatma tipi: | PC, UPC, APC |
| Cinsiyet: | erkek kadın | Kablo Çapı: | 250um, 0,9 mm, 2,0 mm, 3,0 mm veya Özelleştirilmiş |
| Ceket Malzemesi: | PVC, LSZH, OFNR, OFNP, vb. | Kablo Uzunluğu: | 0,5M, 1M, 3M, 5M veya Özelleştirilmiş |
| Kablo Polaritesi: | A Tipi, B Tipi, C Tipi veya Özelleştirilmiş | Kablo Rengi: | Sarı, Aqua, Menekşe, Kireç veya Özelleştirilmiş |
| Vurgulamak: | 1U high density fiber optic patch panel,96F MPO MTP fiber optic chassis,24F MPO MTP-LC cassette distribution box |
||
Ürün Açıklaması

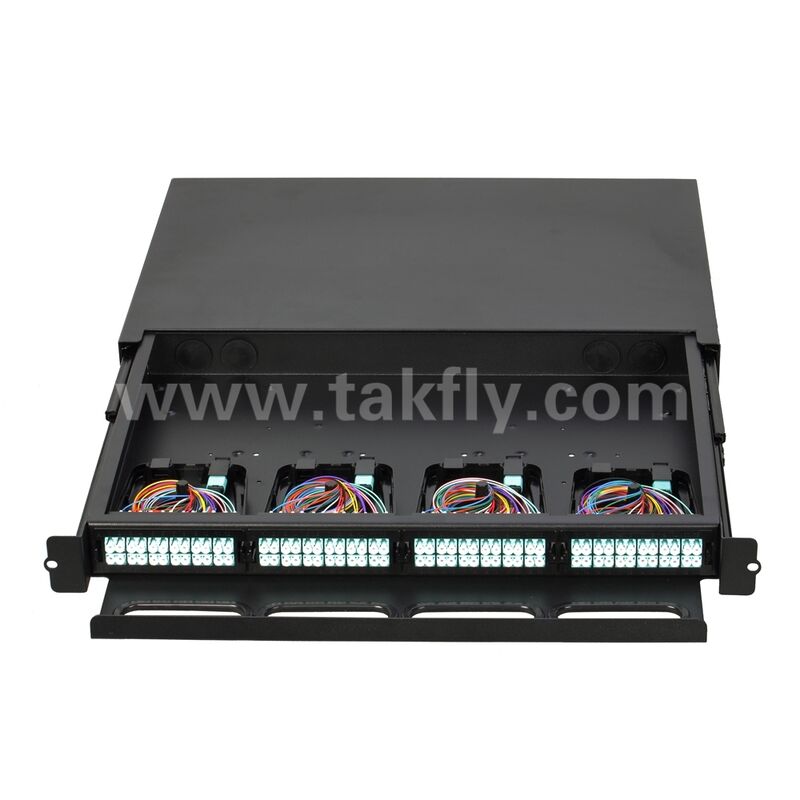

High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel
This high-density fiber optic distribution solution accommodates 4 pieces of 24F MPO MTP-LC cassettes, providing a compact 1U chassis for fiber optic connectivity. Designed for high-density applications, it serves as a fiber optic patch panel, chassis, ODF, and distribution box in one integrated unit.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Please send an inquiry NOW! Welcome & Just Do It!
