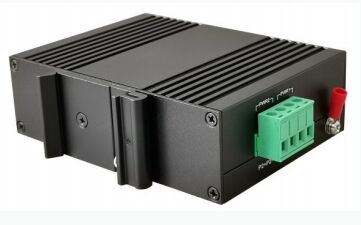

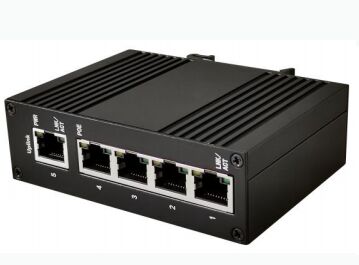

5-port Megabit Industrial DIN-Rail POE Switch
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | TAKFLY/OEM |
| Sertifika: | CE, ROHS, REACH |
| Model numarası: | DF-5×10/100Mbps RJ45 bağlantı noktası |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | Can be negotiated |
| Ambalaj bilgileri: | Karton kutu |
| Teslim süresi: | dikey kurulum |
| Ödeme koşulları: | L/C, T/T, Western Union, MoneyGram, PayPal |
| Yetenek temini: | Haftada 5000 parça |
|
Detay Bilgi |
|||
| Ürün Türü:: | Megabit Endüstriyel DIN Raylı Anahtarlar | Arayüz: | 5×10/100Mbps RJ45 bağlantı noktası |
|---|---|---|---|
| Güç kaynağı: | Giriş Voltajı: DC48 ～ 57V/Terminal Bloğu | Kabuk: | IP40 koruma derecesi, metal kabuk |
| Kurulum: | Raylı | Koruma sınıfı.:: | 5~10 İŞ GÜNÜ |
| Çalışma sıcaklığı:: | 40°C~+85°C | ||
| Vurgulamak: | 5-port DIN-rail PoE switch,Megabit industrial Ethernet switch,DIN-rail fiber switch with PoE |
||
Ürün Açıklaması
5-port Megabit Industrial DIN-Rail POE Switch
The 5-port Megabit Industrial DIN-Rail POE Switch adopts store-and-forward mode with high performance and low power consumption design. Featuring compact size, ease of use, and long lifespan, this product is engineered for industrial environments with comprehensive protection measures including lightning protection, anti-static, and reverse connection protection.
Operating temperature range of -40℃ to +85℃ ensures reliable performance in extreme conditions. The switch automatically learns and updates MAC addresses, enhancing network transmission and switching performance specifically for industrial applications.
Key Features
- 5×10/100Mbps RJ45 ports with Power over Ethernet (PoE) support
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), and IEEE802.3x (flow control) standards
- Supports IEEE802.3af and IEEE802.3at PoE protocols
- Automatic negotiation for 10/100Mbps environments
- Auto MDI/MDIX crossover detection for easy installation
- Full-duplex and half-duplex communication support
- High-standard electromagnetic interference protection
- Dual redundant power inputs for uninterrupted operation
- Industrial-grade components with rigorous production control
- Full aluminum alloy casing for superior heat dissipation
- DIN rail mounting with IP40 protection rating
Technical Specifications
| Port Configuration | 5×10/100Mbps RJ45 ports |
|---|---|
| PoE Standards | IEEE802.3af, IEEE802.3at |
| Operating Temperature | -40℃ to +85℃ |
| Protection Rating | IP40 |
| Mounting | DIN rail |
| Power Input | Dual redundant power supply |
Applications
Intelligent transportation, industrial monitoring, mining, power generation, water conservancy, oil fields, infrastructure, ports, energy, agriculture, wireless coverage, military applications, and public utility markets. Ideal for harsh environments exceeding commercial product specifications.
