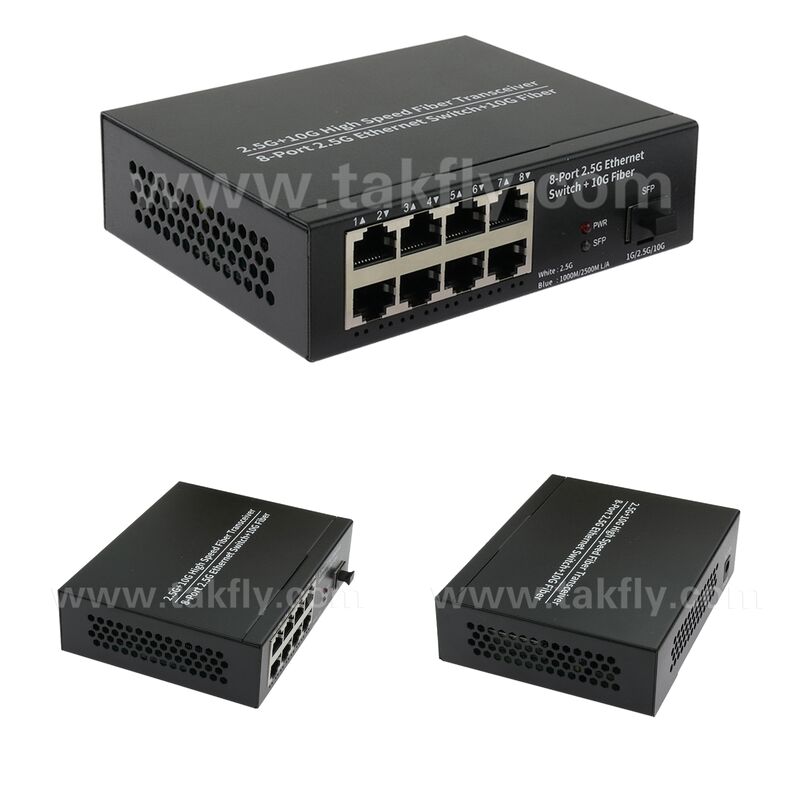

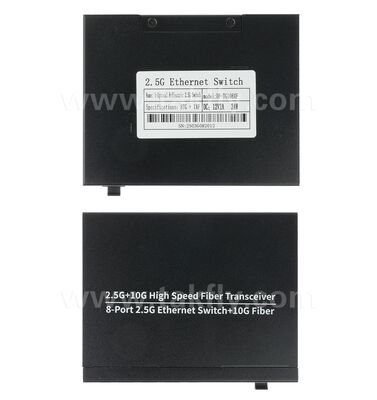

2.5G 8 Port Copper Ethernet Switch with 10G SFP Uplink and Fanless Metal Casing for Reliable Network Performance
Ürün ayrıntıları:
| Marka adı: | Takfly/DF |
| Sertifika: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model numarası: | TK-MPO-PC |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Ambalaj bilgileri: | Uluslararası İhracat Paketleme |
| Teslim süresi: | 1-3 İş Günü (Miktarına Bağlıdır) |
| Ödeme koşulları: | TT %100 |
| Yetenek temini: | 3000 Adet/Gün |
|
Detay Bilgi |
|||
| Kılıf Malzemesi: | PVC | Çalışma dalga boyu: | 1310/1550nm |
|---|---|---|---|
| Ekleme Kaybı: | 0.3dB | Değiştirilebilirlik: | ≤0,2dB |
| Polarite: | A, B veya C yazın | Lif Miktarı: | 24 |
| Mod: | SM AA | Yüksük malzemesi: | Seramik |
Ürün Açıklaması
2.5G 8 Port Copper Switch with 10G SFP Uplink
This 2.5G Ethernet switch features one 10G fiber uplink and eight 2.5G RJ45 ports, delivering ultra-fast connectivity without requiring existing fiber cable replacement. Equipped with an advanced chipset, it offers 2.5 times the speed of standard Gigabit Ethernet, making it ideal for performance-driven network environments.
All ports support wire-speed forwarding to ensure smooth data flow, and the plug-and-play design eliminates manual setup. The desktop-style fanless metal casing provides quiet, reliable operation, while built-in LEDs on the RJ45 ports allow for easy real-time status monitoring.
By extending Ethernet transmission over fiber links, this switch enables flexible and efficient network expansion. It works seamlessly with various 2.5G devices including computers, routers, NAS servers, printers, IP cameras, wireless access points, and other standard networking equipment. The switch is an excellent choice for medium to large enterprise networks, video surveillance systems, hotel installations, and campus networks.
Technical Features
- Provides 1 SFP fiber port supporting 1G/2.5G/10G speeds and 8 copper RJ45 ports supporting 1G/2.5G Ethernet
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3bz (2.5G Ethernet), and IEEE802.3ae (10G Ethernet) standards
- Auto MDI/MDIX support for easy installation and system setup
- Built with high-quality, high-speed network chips using carefully selected chipset design to protect against overload, short circuits, and damage
- Supports auto MDI/MDIX crossover detection; RJ45 ports auto-negotiate 100M/1000M/2.5G speeds for true plug-and-play operation
- 10G uplink SFP fiber port supports auto-negotiation for 1G/2.5G/10G speeds with plug-and-play functionality
- Utilizes store-and-forward switching architecture with high-capacity internal buffers for non-blocking 2.5G wire-speed forwarding
- Features professional surge protection for both power and network ports
- Fanless passive cooling ensures stable operation within temperature range of -10°C to +70°C
- Supports both full-duplex and half-duplex communication with auto-negotiation capability
- All-metal housing for enhanced durability, strength, and superior heat dissipation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 2.5G Ethernet Switch |
| MTBF | 100,000 hours |
| Input Voltage | External power supply DC 12V |
| Operating / Storage Temperature | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Port Description | 1 x SFP fiber port (1G/2.5G/10G) + 8 x RJ45 copper ports (1G/2.5G) |
| Total Power Consumption | < 8.5W (full load) |
| Fiber Port Type | SFP |
| LED Indicators | Power, Fiber Port Status, Copper Port Status, System Status |
| Switching Mode | Store-and-Forward |
| Switching Capacity | 100Gbps |
| Packet Forwarding Rate | 74.4Mpps |
| MAC Address Table | 8K |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3ae |
| Flow Control | Supported |
| Network Topology | Supports ring, star, bus, tree, and other topologies |
| Ingress Protection | IP30 |
| Housing | High-quality metal with superior heat dissipation |
| Model Number | ZSTX-GS06-2.5G1F8-SFP |
| Power Supply | External power supply DC 12V |
| Weight | 0.5kg / unit |
| Product Dimensions | 128 * 101 * 36 mm (excluding protrusions) |
| Package Dimensions | 200 * 162 * 47 mm |
| Carton Quantity | 48 units / carton |
