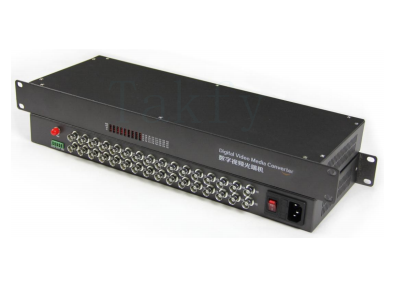

32CH Digital Video Optical Converter – 32 Video + 1 RS485 Data over Single Fiber
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen ve ZhongShan, Çin |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model numarası: | 32 Kanal |
Ödeme & teslimat koşulları:
| Fiyat: | can be negotiated |
|---|---|
| Ambalaj bilgileri: | karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Banka havalesi, Western Union, PayPal |
|
Detay Bilgi |
|||
| Vurgulamak: | 32CH digital video fiber converter,fiber optic media converter with RS485,single fiber video data converter |
||
|---|---|---|---|
Ürün Açıklaması
32CH Digital Video Optical Converter
32 Video + 1 RS485 Data over Single Fiber
Product Overview
This series of digital video optical converters utilizes all-digital communication technology to simultaneously transmit 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber. Video signals employ non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, delivering broadcast-level image quality for diverse application requirements.
Key Features
- Fully-digital, non-compressed, broadcast-quality fiber optic transmission
- Wide optical dynamic range - no field adjustment required
- Compatible with PAL, NTSC, SECAM, and other video transmission formats
- RS485 / RS422 data communication support
- Three-stage lightning protection design
- Industrial-grade design with high reliability for demanding environments
- Automatic power adjustment and auto temperature compensation circuit
- Overload protection with auto recovery
- Full Surface Mount Technology (SMT) for improved reliability and consistency
- Plug-and-play installation without on-site commissioning
- LED status indicators for real-time monitoring
- Built-in lightning protection and EMI/RFI resistance
Performance Specifications
Optical Indicators
| Transmission wavelength | 1310nm/1550nm |
| Optical interface | FC / PC |
| Transmit optical power | -8dB |
| Receiver sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum chain optical loss allowed | 14dB |
| Transmission distance | More than 20KM (single mode) |
Technical Parameters
| Operating temperature | -40℃ ~ +75℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power consumption | 2.5W @ DC5V |
| Dimensions | 1U*19' *155mm |
| Mean Time Between Failures (MTBF) | More than 100,000 hours |
Typical Applications
- Security & Surveillance - Safe city, building security monitoring
- Transportation - Highway and railway remote monitoring systems
- Public Transit - Urban public transport monitoring
- Infrastructure - Operator remote equipment room monitoring
- Finance - Bank surveillance systems
- Energy & Utilities - Power system remote monitoring
- Industrial - Industrial and mining production process monitoring
- Water Management - Flood control and reservoir site monitoring
- Aviation - Airport surveillance
- Media - Radio and television image transmission
- Education - School campus and examination room monitoring
- Commercial & Residential - High-rise buildings, intelligent buildings
- Logistics - Customs barrier and warehouse video surveillance
- Petrochemical - Petrochemical facility monitoring
- Correctional - Video surveillance systems
- Public Safety - Government facility surveillance
- Defense - Command and control position visualization
- Emergency Services - Forest fire command systems
Typical Application Diagram
Model Specifications
Model Code Explanation:
① Number of video signal channels
② Number of data signal channels (D: forward data, d: reverse data)
③ Number of voice signal channels (A: forward voice, a: reverse voice)
④ Number of switching value channels (K: forward switching value, k: reverse switching value)
⑤ E: Ethernet interface
⑥ T: Telephone interface
⑦ SM: Single-mode, MM: Multi-mode
⑧ Optical interface (optional): FC or SC
⑨ C: Chassis card type, E: Independent type
① Number of video signal channels
② Number of data signal channels (D: forward data, d: reverse data)
③ Number of voice signal channels (A: forward voice, a: reverse voice)
④ Number of switching value channels (K: forward switching value, k: reverse switching value)
⑤ E: Ethernet interface
⑥ T: Telephone interface
⑦ SM: Single-mode, MM: Multi-mode
⑧ Optical interface (optional): FC or SC
⑨ C: Chassis card type, E: Independent type
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Branding Accepted - Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry events including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
