Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | TK-PC-48F-SC-OS2-50M |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, MoneyGram/Paypal |
| Yetenek temini: | 1000 pc/gün |
|
Detay Bilgi |
|||
| Ürün adı: | Kapalı Düz Dubleks Optik Kablo | Dış Çap (mm): | 2-3.0mm |
|---|---|---|---|
| Fiber sayısı: | 2 | Çekirdek güçlendirme: | Aramid iplik |
| Malzeme: | Paslanmaz çelik | Çap(±1μm): | 125μm |
| Ceket malzemesi: | LSZH/PVC | Renk: | Tek modlu kablo için sarı, çok modlu kablo için turuncu veya Özelleştirilmiş |
| Dalgaboyu: | 1310nm, 1550nm | Uzunluk: | 2000m veya özelleştirilmiş |
| Çalışma sıcaklığı: | -20 ℃ ~ 70 ℃ | Kaplama çapı(±5μm): | 250 μm |
| Fiber markası: | Corning, YOFC, OFS, Draka | ||
| Vurgulamak: | Indoor duplex optical cable 2000M,Flat fiber optic cable LSZH,PVC PU duplex optical cable |
||
Ürün Açıklaması
Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Flat duplex optical cable uses Φ600µm or Φ900µm compact fiber as the optical transmission medium. The compact fiber is wrapped in a layer of aramid yarn as the strength component unit, which is made of a layer of PVC or LSZH material, It is then made of a flat layer of polyvinyl chloride (PVC) or a low-smoke halogen-free material (LSZH low-smoke, halogen-free, flame retardant) jacket.
Fiber Optic Cable Applications
- Flat Duplex (two basic units inside) moving connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of fame-retardant, low induced attenuation within the operating temperature range
Fiber Optic Cable Parameter and Properties

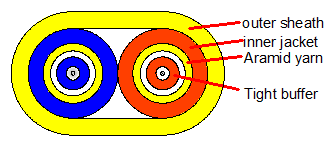

Fiber Optic Cable Structure
Product Picture
Why Choose TAKFLY?
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any questions, feel free to contact us at any time!
