MPO to LC Uniboot OM3 Fiber Optic Cable Patch Cord, MMF 8-core Fiber, For QSFP+Transceiver
Ürün ayrıntıları:
| Place of Origin: | Shenzhen, China |
| Marka adı: | Neutral/OEM/Takfly |
| Sertifika: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-8F-OM3-4LCDU-005 |
Ödeme & teslimat koşulları:
| Minimum Order Quantity: | 1 |
|---|---|
| Fiyat: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Detay Bilgi |
|||
| Cores: | 8F | Fiber Type: | MM OM3 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | MM ≥20dB | Cable Jacket: | LSZH/OFNP |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Sertifika: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | Plenum (OFNP) 0.35dB Max Type B MPO Male to MPO Female Fiber Patch Cable |
| Vurgulamak: | MPO to LC OM3 fiber optic cable,8-core MMF fiber patch cord,QSFP+ transceiver compatible fiber cable |
||
Ürün Açıklaması

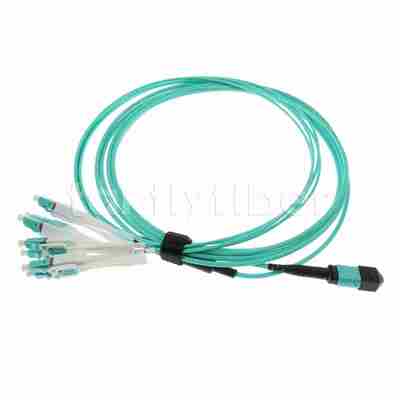

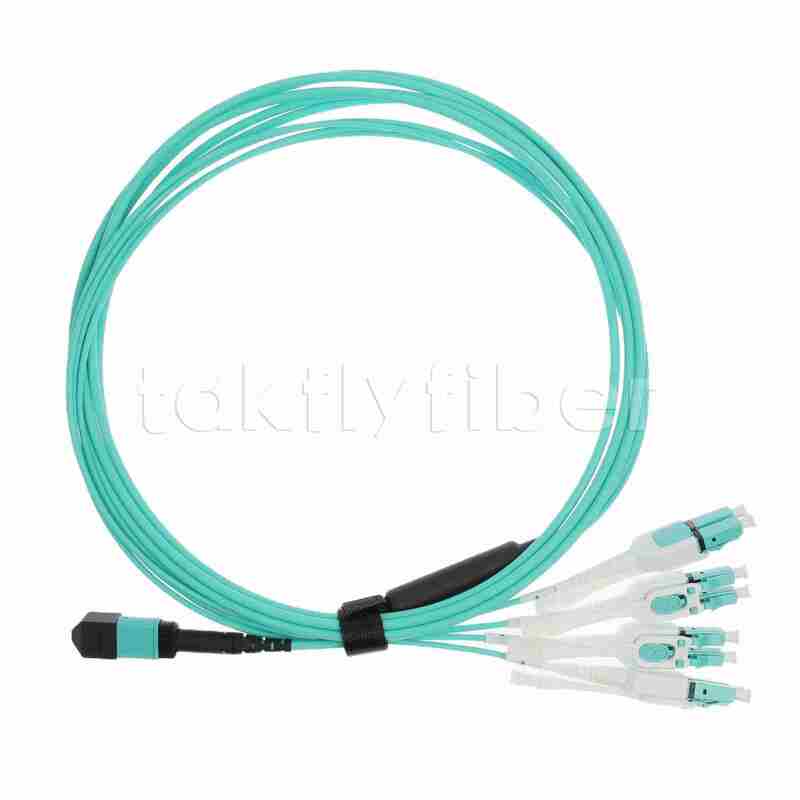

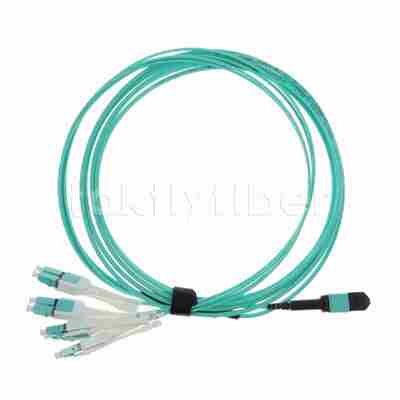

MPO to LC Uniboot OM3 Fiber Optic Cable Patch Cord
Takfly's 8F MPO to LC Uniboot Breakout Patchcord is ideal for use as a 40 Gbps (40 GBASE-SR 4) link between two QSFP+ transceivers, 100G QSFP28, and as a back-end backbone or distribution cable.
Takfly's 8F MPO To LC Uniboot Breakout Patchcord uses Corning optical fiber and a Hakusan MPO metal ring to ensure stable performance and support data center 800G QSFP-DD/OSFP DR8 and 800G OSFP XDR8 of Base-16.
The 8F MPO To LC Uniboot Breakout Patchcord uses a reinforced tensile structure design and has passed the IEC61755-1 standard test.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm；Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Fiber and Cable Options
- Available in SM (G.657A1), OM4
- Compact LSZH cable jackets available
- Jacket Standard Colours: G.657A1 - Yellow, OM4 - Aqua or Erika Violet
MPO Interface
- Female and Male MPO connectors available
- Base-8, Base-12 available (for Base-16, and Base-24 contact sales rep)
- Standards-based polarity options available
- Base 8 - Pol B/QSFP
- Base 12 - Polarity A, B & C.
Optimized Performance
- Low-loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
- 100% factory tested for proven reliability and connectivity
- Manufactured in accordance with TIA 568 and IEC 61754 standards
Benefits
- Next Generation Network Speeds
- Assemblies can be used throughout multiple active equipment upgrades in order to future-proof your network
- Modular connectivity support 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improved air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity
Takfly MTP MPO Patch Cable Production Flow Diagram
Why Choose TAKFLY - Advantages
Professional Manufacturer
- More than 25 years manufacturing experience in Fiber optic products - one stop purchasing
- More than 450 assembly workers with 3 years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Worldwide Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- After-sales Services: Available for 24 hours
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days

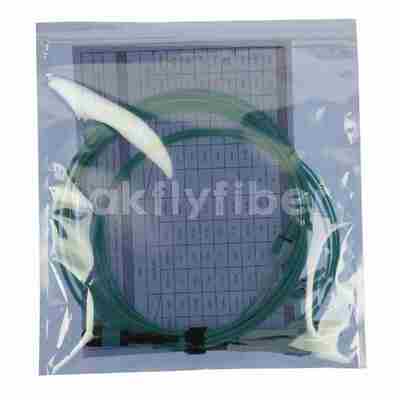

- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Shipping
- DHL, UPS, FEDEX, TNT, EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients
- By Sea or By Air, could use your own pointed forwarder or our cooperated one
Payment Terms
T/T, Paypal, Western Union and L/C are available.
Pricing
If your quantity is large, the price could be negotiated.
