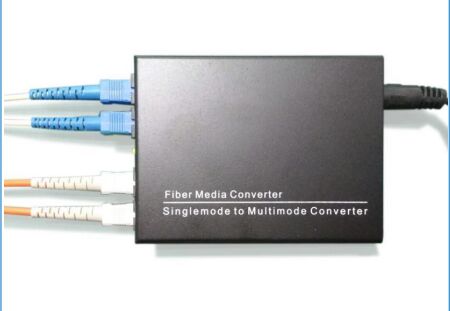

Singlemode to Multimode Fiber Optic Media Converter at Gigabit Speed Stable Reliable Networking
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | Gigabit Hızında Tek Moddan Çok Modlu Fiber Optik Medya Dönüştürücüye |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, Moneygram/PayPal |
| Yetenek temini: | 2000 adet/hafta |
|
Detay Bilgi |
|||
| Ürün Adı: | Gigabit Hızında Tek Moddan Çok Modlu Fiber Optik Medya Dönüştürücüye | Fiber konektörü: | Çok modlu ST/SC; Tek modlu SC/ST/FC |
|---|---|---|---|
| iletim hızı: | CF01 serisi: 2~155Mbps; CG01 serisi: 100~1250Mbps | Optik fiber: | Çoklu mod: 50/125,62,5/125μm; Tekli mod: 8,3/125,8,7/125,9/125, 10/125μm |
| Güç Kaynağı: | AC110~240V/DC5V; DC 48V / DC5V | Çalışma Sıcaklığı: | 0~50°C |
| Saklama derecesi:: | -20 ~ +70°C | Nem: | %5~%95 |
| Vurgulamak: | Gigabit fiber optic media converter,Singlemode to multimode converter,Stable fiber optic networking |
||
Ürün Açıklaması
Gigabit Speed Singlemode to Multimode Fiber Optic Media Converter
High-performance fiber optic media converter designed for stable and reliable networking at gigabit speeds, enabling seamless conversion between singlemode and multimode fiber connections.
Product Overview
Our SM to MM fiber optic media converters efficiently convert various optical fiber digital signals including Ethernet, ATM, SDH, and control signals. Built with high-efficiency conversion circuits, premium IC chips, and integrated optical transceiver modules, these products deliver stable performance and exceptional quality suitable for diverse fiber optic digital transmission environments.
Key Features
- Flexible optical signal conversion between multi/multimode, single/multimode, or single/singlemode fiber configurations
- Supports conversion of 2~155Mbps or 100~1250Mbps optical digital signals
- Multiple fiber connector options: SC, ST, FC interfaces
- Extended transmission distances: multimode up to 2km, singlemode available from 20-120km
- Robust construction for reliable operation in various environmental conditions
Technical Specifications
| Specification | DF-CF01 Series | DF-CG01 Series |
|---|---|---|
| Fiber Connector | Multimode ST/SC; Singlemode SC/ST/FC | Multimode ST/SC; Singlemode SC/ST/FC |
| Transmission Rate | 2~155Mbps | 100~1250Mbps |
| Optical Fiber Types | Multimode: 50/125, 62.5/125μm; Singlemode: 8.3/125, 8.7/125, 9/125, 10/125μm | |
| Transmission Distance | Multimode: up to 2km; Singlemode: 20-120km | 50µm multimode: up to 550m; 62.5µm multimode: up to 224m; Singlemode: 10-100km |
| Power Supply | AC110~240V/DC5V; DC 48V / DC5V | |
| Operating Temperature | 0°C to +50°C | |
| Storage Temperature | -20°C to +70°C | |
| Humidity | 5% to 90% | |
Why Choose TAKFLY
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
What are your packing terms?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
What are your payment terms?
T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
What is your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Can you produce according to samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
