MPO/MTP to LC Uniboot Breakout Patch Cord – OM3 Multimode, High-Density, Polarity Reversible for 40G/100G Data Centers
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen ve ZhongShan Çin |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model numarası: | MPO/MTP-LC Uniboot OM3 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | Can be negotiation |
| Ambalaj bilgileri: | karton |
| Teslim süresi: | 5-9 İşler adete bağlıdır |
| Ödeme koşulları: | Banka havalesi, Paypal |
| Yetenek temini: | 3000 adet/hafta |
|
Detay Bilgi |
|||
| Vurgulamak: | MPO LC breakout patch cord,MTP LC OM3 multimode cable,high-density polarity reversible patch cord |
||
|---|---|---|---|
Ürün Açıklaması

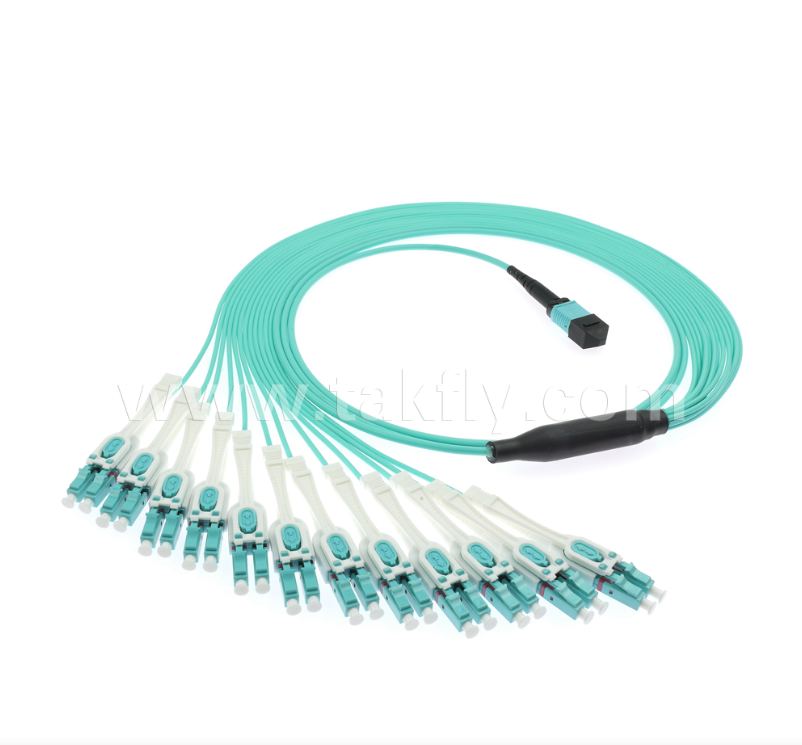

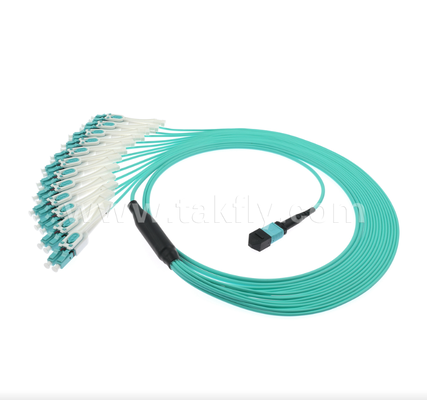

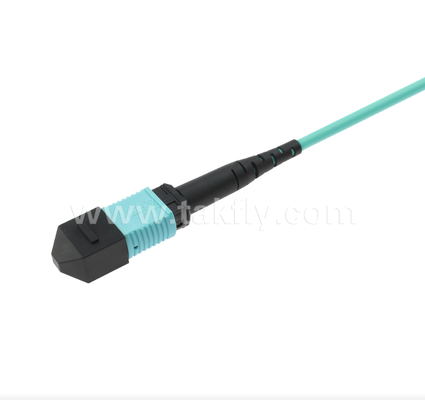

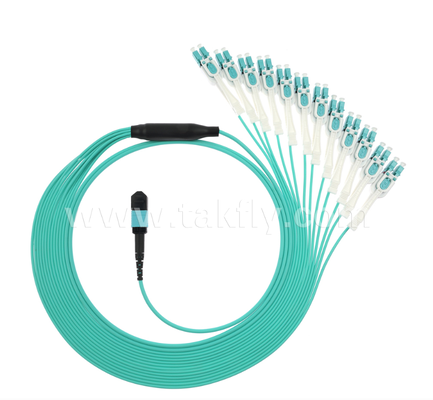

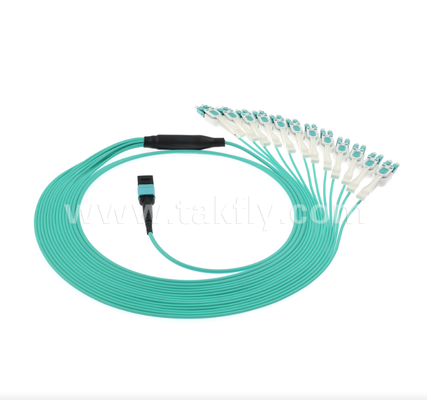

MPO/MTP to LC Uniboot Breakout Patch Cord
OM3 Multimode, High-Density, Polarity Reversible for 40G/100G Data Centers
Product Overview
The MPO/MTP-LC Uniboot breakout patch cord is a high-performance, space-saving interconnect solution designed for high-density data centers, enterprise networks, and 40G/100G backbone architectures. It features a multi-fiber MPO/MTP connector on one end, breaking out to individual LC duplex connectors on the other end, enabling seamless conversion from high-density trunk cabling to standard equipment interfaces.
Key Features

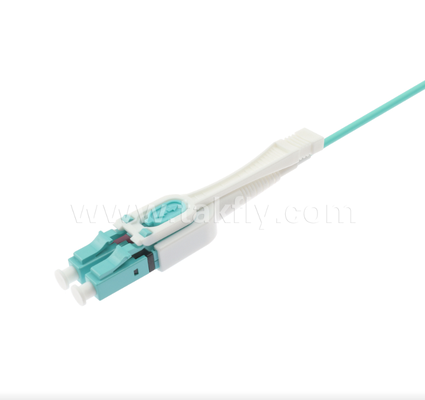

Uniboot LC Design
Dual LC connectors in one boot, providing 50% space saving compared to standard duplex LC connectors
Field-Reversible Polarity
No tools required for Type A/B/C polarity changes in the field
OM3 Multimode Fiber
Laser-optimized 50/125μm fiber supporting 10G up to 300m, 40G/100G SR4 up to 100m
Enhanced Cable Management
Multi-core main cable reduces tangling and simplifies organization in high-density environments
Technical Specifications
| Connector Type | MPO/MTP to LC Uniboot Duplex |
| Fiber Type | OM3 50/125μm Multimode |
| Polarity | Field Reversible (Type A/B/C) |
| Fiber Count Options | 4/8/12/24 Fiber |
| Compliance | IEC 61754-7, TIA/EIA-604-5 (FOCIS-5) |
| Testing | 100% Factory Tested (IL/RL/End-face Inspection) |
Quality Construction
Available with high quality ferrule and professional polishing technology for precise optical endface matching, ensuring stable transmission and efficient connection performance.
Applications
- Data centers (10G/40G/100G architectures)
- Enterprise networks & campus backbones
- Optical transceivers (QSFP/QSFP-DD)
- High-density patching areas
- Storage area networks (SAN)
- Breakout assemblies & fan-out harnesses
- Premise installations
- 40G/100G equipment interconnect
Customization Options
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable fiber count, length, breakout length, polarity, and jacket options to meet specific application requirements.
Why Choose TAKFLY?
26 Years Manufacturing Experience
Extensive expertise in fiber optic product manufacturing
Experienced Assembly Team
More than 80 assembly workers with 6+ years of experience
Strong R&D Capability
More than 10 R&D engineers driving innovation
Advanced Production Equipment
16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities
More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, and power meter testers
OEM Branding Accepted
Custom logo and branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Delivery Information
| Samples | 1-3 working days |
| Mass Production Orders | 3-7 working days |
| Packaging Options | Plastic bag, carton, and pallet options available |
