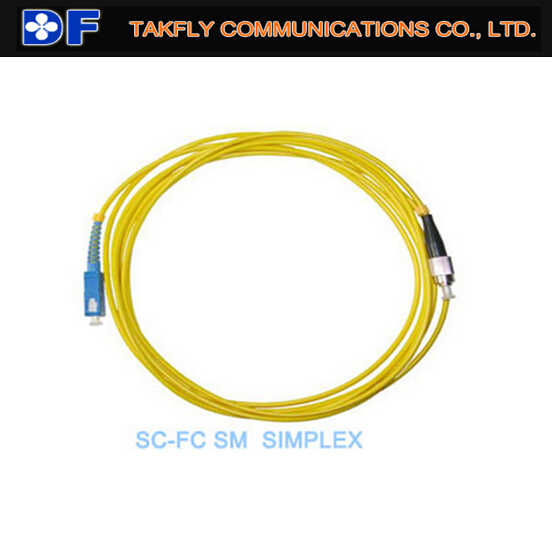

SC to FC Simplex Single Mode Fiber Optic Patch Cord with PVC Sheath and Customized Length Options
Ürün ayrıntıları:
| Sertifika: | RoHS, CE |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 100 |
|---|---|
| Fiyat: | 0.75 |
|
Detay Bilgi |
|||
| Bağlantı yapısı: | FC-SC | İzin verilen yanal basınç: | > 1000 (n/100mm) |
|---|---|---|---|
| İzin verilen gerilme mukavemeti: | 1000N <10000n | Çekirdek: | Tek çekirdekli |
| Kılıf malzemesi: | PVC | Fiber tipi: | 0.9mm 2.0mm 3.0mm |
| Fiber uzunluğu: | 1m 3m 5m 10m veya özelleştirilmiş | Bağlayıcı: | SC'den FC'ye |
| Ekleme kaybı: | <0.3dB | Dönüş Kaybı: | ≥50dB |
| Tekrarlanabilirlik: | ≤0.1 | Dayanıklılık: | <0.1dB tipik değişiklik, 1000 çiftleşme |
| Değiştirilebilirlik: | ≤0.2db | Çalışma sıcaklığı: | -20 ° C ~ +70 ° C |
| Saklama sıcaklığı: | -40°C ~ +80°C | ||
| Vurgulamak: | Simplex Fiber Optic Patch Cord,PVC Sheath Fiber Optic Cable,Customized Length Optical Patch Cord |
||
Ürün Açıklaması
SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
