Simplex Optical Cable 2000M LSZH/PVC/PU
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | TK-PC-48F-SC-OS2-50M |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, MoneyGram/Paypal |
| Yetenek temini: | 1000 pc/gün |
|
Detay Bilgi |
|||
| Ürün adı: | Simplex Optik Kablo | Fiber sayısı: | 1 |
|---|---|---|---|
| Çekirdek güçlendirme: | Aramid iplik | Kılıf malzemesi: | LSZH/PVC |
| Dış Çap (mm): | 1,6-3,0 mm | Kablo ağırlığı: | 2,6-7,5(kg/km) |
| Renk: | Beyaz veya özelleştirilmiş | Dalgaboyu: | 1310nm, 1550nm |
| Çap(±1μm): | 125μm | Kaplama çapı(±5μm): | 250 μm |
| Çalışma sıcaklığı: | -20 ℃ ~ 70 ℃ | Uzunluk: | 2000m veya özelleştirilmiş |
| Fiber markası: | Corning, YOFC, OFS, Draka | ||
| Vurgulamak: | Simplex Optical Cable 2000M,LSZH Fiber Optic Cable,PVC PU Simplex Cable |
||
Ürün Açıklaması
Simplex Optical Cable 2000M LSZH/PVC/PU
Simplex cable uses Φ600μm or Φ900μm tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of aramid yarn as strength member units, which is most extruded to produce a layer of (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

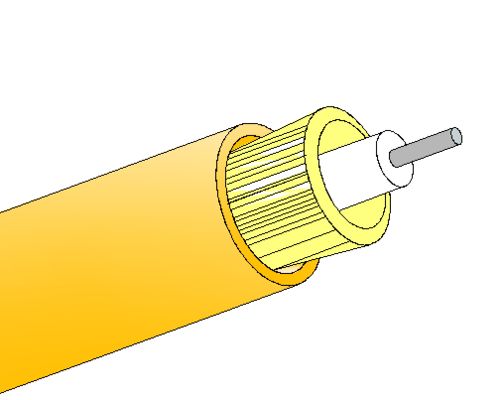

Product Structure
Product Picture
Why Choose TAKFLY?
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any questions, feel free to contact us at any time!
