Indoor MINI Optical Cable 2000M LSZH/PVC/PU
Ürün ayrıntıları:
| Menşe yeri: | Çin, Shenzhen |
| Marka adı: | DF/OEM/Nuetral |
| Sertifika: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model numarası: | TK-PC-48F-SC-OS2-50M |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | Pazarlık edilebilir |
|---|---|
| Fiyat: | negotiable denpend on QTY |
| Ambalaj bilgileri: | Blister kutu + Karton |
| Teslim süresi: | 5-9 iş günü adete bağlıdır |
| Ödeme koşulları: | Western Union, T/T, MoneyGram/Paypal |
| Yetenek temini: | 1000 pc/gün |
|
Detay Bilgi |
|||
| Ürün adı: | İç Mekan MINI Optik Kablo | Dış Çap (mm): | 3,0-17,5 mm |
|---|---|---|---|
| Fiber sayısı: | 2-24 veya 26-144 | Çekirdek güçlendirme: | Aramid iplik |
| Malzeme: | FRP | Ceket malzemesi: | LSZH/PVC |
| Renk: | Tek modlu kablo için sarı, çok modlu kablo için turuncu; Veya istek üzerine diğer renkler de mevcutt | Dalgaboyu: | 1310nm, 1550nm |
| Çap(±1μm): | 125μm | Kaplama çapı(±5μm): | 250 μm |
| Çalışma sıcaklığı: | -20 ℃ ~ 70 ℃ | Uzunluk: | 2000m veya özelleştirilmiş |
| Fiber markası: | Corning, YOFC, OFS, Draka | ||
| Vurgulamak: | Indoor MINI Optical Cable 2000M,LSZH Fiber Optic Cable,PVC MINI Optical Cable |
||
Ürün Açıklaması
Indoor MINI Optical Cable 2000M LSZH/PVC/PU
2-24 core mini-optic cables use Φ250μm color fiber as optical communication medium. Its color fibers are wrapped in a layer of aramid yarn as a force strengthening unit, which is coated to make a layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
26-144 core mini-optic cables are used as a subunit (250μm color fiber, aramid yarn is a reinforcement element, 3.0mm inner sheath), a fiber-reinforced plastic (FRP) positioned at the center of the core as a non-metal strengthening, the subunit is surround the FRP around, the subunit is a PVC or LSZH material sheath, and the last layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Applications
- Optical fiber active connection jumper or tail fiber
- Routing and patching for data center and indoor communication network location
- Interconnection of instruments and communication equipment
Features
- Coated fiber is easy to peel off
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Multi-core number and small outer diameter, non-metal center strengthening structure
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

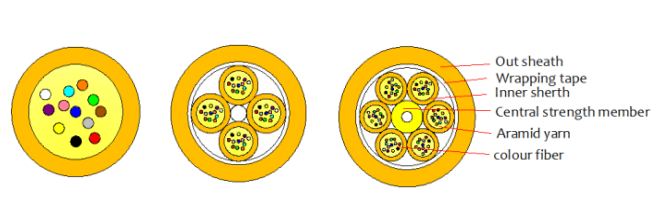

Product Structure
| Fiber count | 2-24 | 26-144 |
|---|---|---|
| Optical fiber | Diameter(±1µm): 125µm Coating diameter(±5µm): 250µm Color: 1. Blue 2. Orange 3. Green 4. Brown 5. Grey 6. White 7. Red 8. Black 9. Yellow 10. Violet 11. Pink 12. Aqua |
|
| Subunit | Diameter(±0.15mm): 3.0mm Core reinforce: Aramid yarn Sheath material: PVC/LSZH Color: Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request |
|
| Supplementar | Filler | |
| Strength member | Center reinforcement: FRP | |
| Outer sheath | Sheath material: PVC/LSZH Color: Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request |
| Cable | Fiber count | Subunit count (12pc/set) | Outside diameter (mm) | Cable weight (kg/km) | Max tensile force(N) | Crush resistance (N/100mm) | Min bend radius(D) | Running temperature |
|---|---|---|---|---|---|---|---|---|
| 2-24 | / | 3.0 | 8 | 80/150 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 26-48 | 4 | 9.0 | 80 | 200/500 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 50-72 | 6 | 11.2 | 130 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 74-96 | 8 | 13.5 | 180 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ | |
| 98-144 | 12 | 17.5 | 280 | 300/1000 | 1000 | 20/10 | -20 ℃ ~+70 ℃ |
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
